Parameter Operating Voltage 20V(The module default is 20V and the voltage can be changed to 9V 12V 15V by short circut)
High Current Max Current5A(In order to use over 3A you will need to use an electronically marked Type-C cable A real USB PD power source is required, will not work with QC-only chargers)
Application widely use for DIY power supply(Does not support charging mobile phones or tablet PC)
Note Not all USB-C power supplies can support all voltages, If the power supply does not support the requested voltage then the next lowest voltage will be provided, The module just performs the PD negotiation and passes the output, For example, set up 15V while the supports 5/9/20V, then 9V will be triggered.

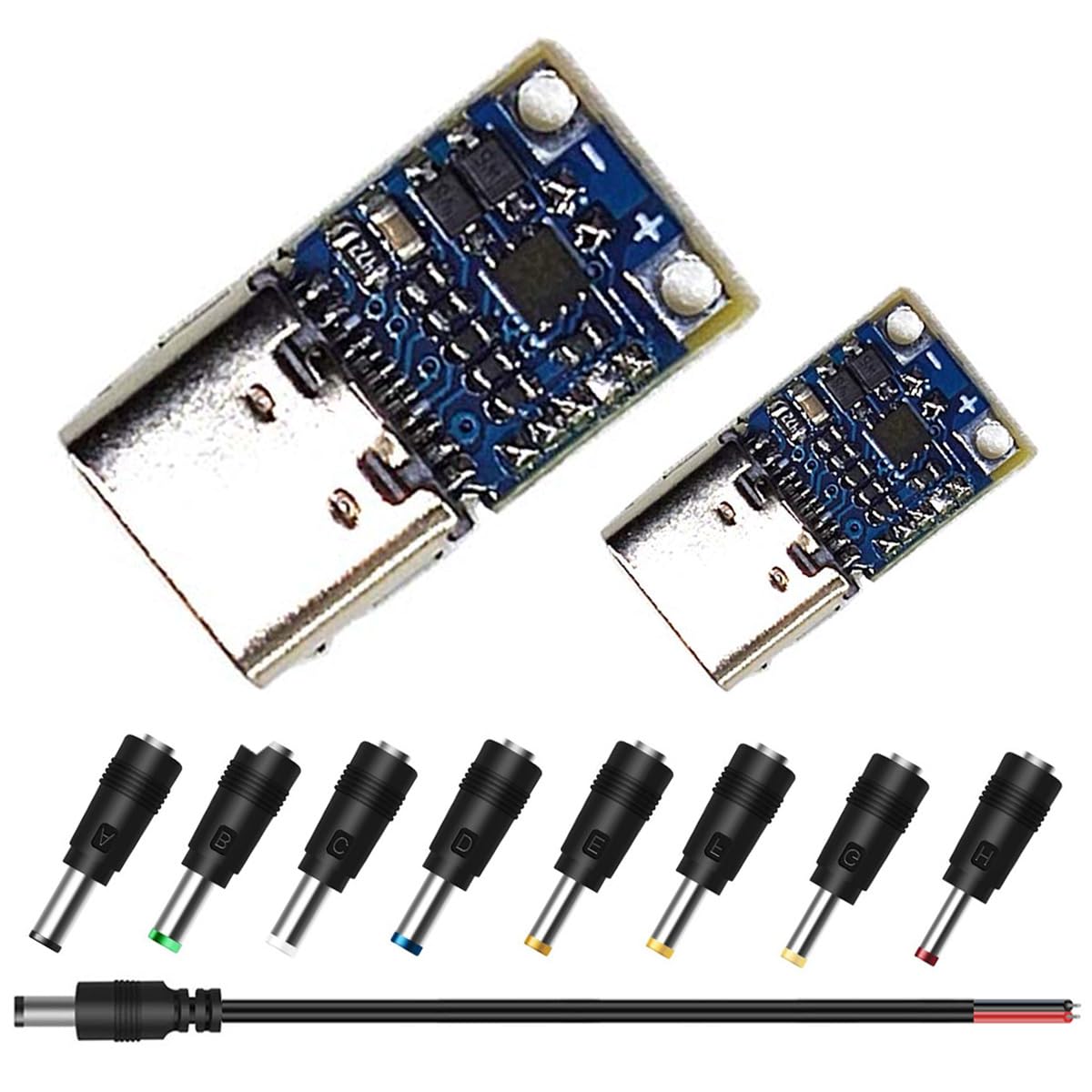

Package Content The package comes with 2 x PD Power Trigger Module, 1 x 6.4x4.4mm Connector, 1 x 6.3x3.0mm Connector, 1 x 5.5x2.5mm Connector, 1 x 5.5x2.1mm Connector, 1 x 5.5x1.7mm Connector, 1 x 4.8x1.7mm Connector, 1 x 4.0x1.7mm Connector, 1 x 3.5x1.35mm Connector, 1 x DC Power Cable
